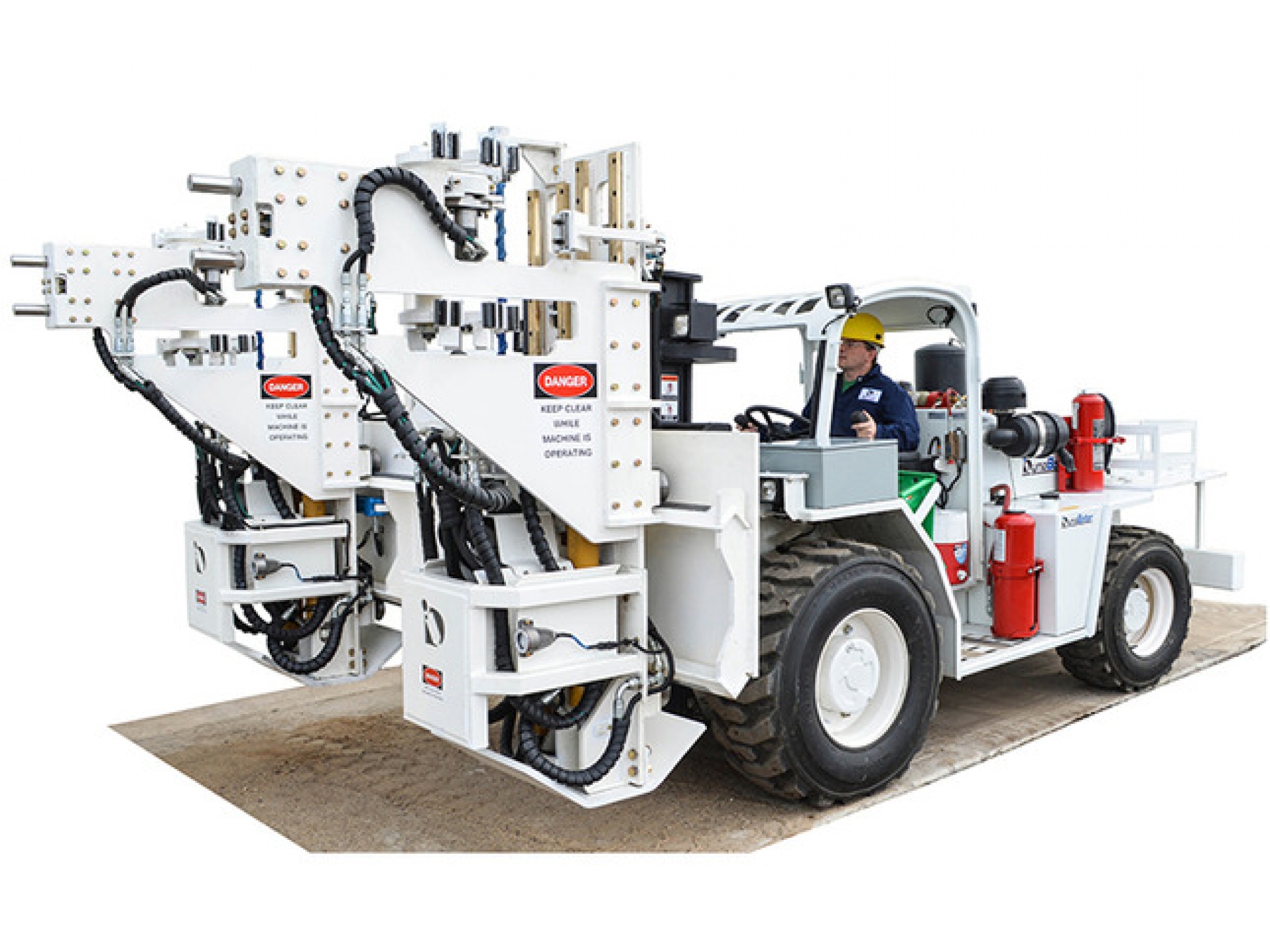

DynaBolter V4.0 - Roof Bolter


Description

Technical Specifications

Safety

  • Warning indicator lights and gauges
  • Back-up alarm
  • ROPS/FOPS certified canopy
  • Low mount amber strobe light
  • Checkfire suppression and control system
  • Fire extinguisher
  • Hydraulics cut-out when machine is in gear
  • All functions automatically disable with arm-rest up
  • No hydraulic lines in cab

 Controls

  • Dual joysticks with thumb rockers control: mast, head, drill and bolt functions
  • Electro hydraulic control

 Working Capacity

  • Two 6-bolt carousels
  • Capable of installing bolts in back height of 2136mm (7’-0”) to 5334mm (17’-6”)
  • Capable of installing multiple styles: angle brackets and eye bolts
  • Maximum back height: 5334mm (210.0")
  • Minimum back height: 2134mm (84.0")

 Chassis

  • Overall height: 2007mm (79.0”)
  • Overall length: 5705mm (224.6”)
  • Overall width: 2445mm (96.3”)
  • Ground clearance: 381mm (15.0”)
  • Wheelbase: 2209mm (87.0”)

 Engine

  • 84 HP turbocharged diesel
  • Meets Tier IV interim emissions standards
  • Engine protection shut-down system
  • Engine manual throttle control
  • Neutral safety start

 Transmission and Drivetrain

  • 4-speed manual transmission (powershift optional)
  • 4-wheel Drive
  • F-N-R selector mounted to steering column
  • High-load capacity drive and steer axles
  • Limited slip differential

  Operator's Cab

  • Single Operator—Sit Down
  • 178mm (7.0”) onboard LCD operation screen
  • Forward and rear facing cameras (optional)

 Work Lights

  • Front and rear LED work lights
  • LED spotlight
  • Extra fender mounted work lights
