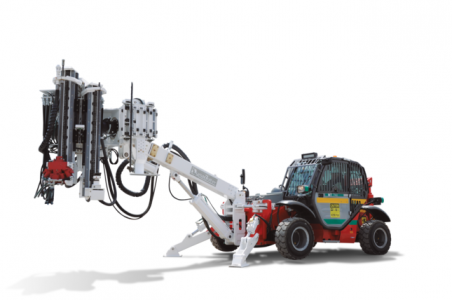

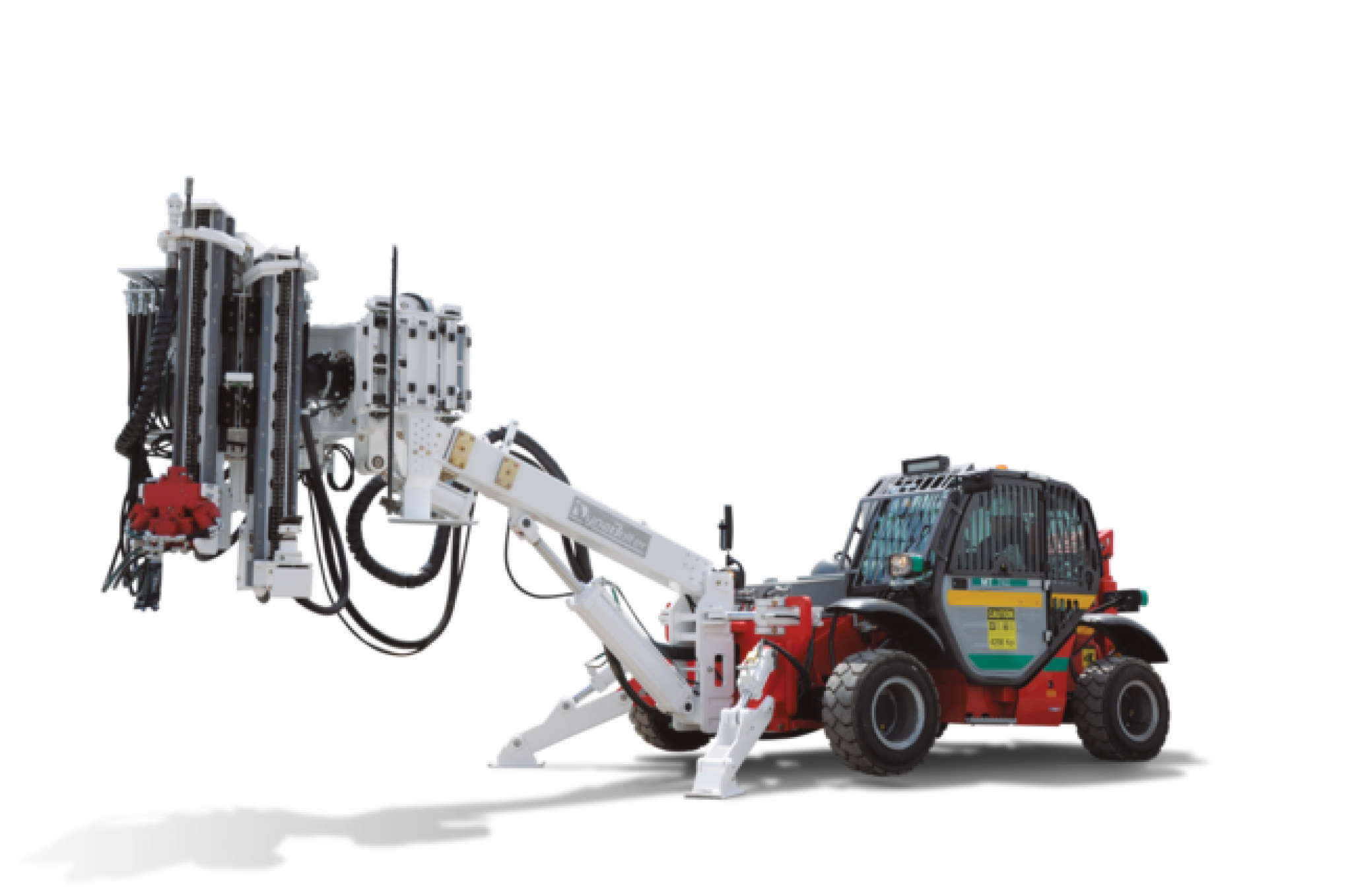

DynaBolter V5.0 - Hard Rock Roof Bolter


Description

Technical Specifications

Safety

  • Warning indicator lights and gauges
  • Back-up alarm
  • ROPS/FOPS certified canopy
  • Low mount amber strobe light
  • Check fire suppression and control system
  • Fire extinguisher
  • SAHR (spring applied, hydraulically release) parking brake
  • Hydraulics cut-out when machine in gear
  • All functions automatically disable when the door is open
  • No hydraulic lines in cab

Controls

  • Dual joysticks with thumb rockers control: outriggers, boom, head, drill and bolt functions
  • Electro-hydraulic control

Working Capacity

  • Boom swing: 24.5 degrees left and right
  • Capable of installing 1500mm (59.0”) bolts in a 2100mm (83.0”) back or 1800mm (71.0”) bolts in a 2400mm (94.0”) back
  • Capable of multiple bolt diameters
  • Adaptable to shell or epoxy style bolts
  • 6-bolt carousel
  • Maximum back height: 5900mm (232.3”)
  • Minimum back height: 2529mm (99.6”)
  • Maximum forward reach: 9657mm (380.19”)
  • Hydraulic powered high torque percussion drill

Chassis

  • Overall height: 2098mm (82.6")
  • Overall length: 4760mm (187.0")
  • Overall weight: 2260mm (89.0")
  • Ground clearance: 229mm (9.0")
  • Wheelbase: 2810mm (111.0")

Engine

  • 94 HP turbocharged diesel
  • Meets Tier IV interim emissions standards
  • Engine protection shut-down system
  • Neutral safety start

Transmission and Drivetrain

  • Power-shift automatic transmission
  • 3 mode hydraulic steering
  • 2 or 4 wheel drive
  • Torque converter transmission
  • F-N-R selector mounted on steering wheel
  • High load capacity drive and steer axles
  • Limited slip differential
  • Rear-wheel, hydraulic power steering

Operator’s Cab

  • Single operator—sit down
  • 178mm (7.0”) onboard LCD operation screen
  • Forward and rear facing cameras (optional)

Work Lights

  • Front and rear LED work lights
  • LED spotlight
  • Extra fender mounted work lights

Automated Epoxy Injection (Optional)

  • Epoxy injection controlled from operator’s cab
  • Epoxy injected using hydraulically driven compressed air
  • Separate arm switch and fire button prevents accidental discharge of epoxy
  • Smart check system ensures all conditions are met before firing epoxy
