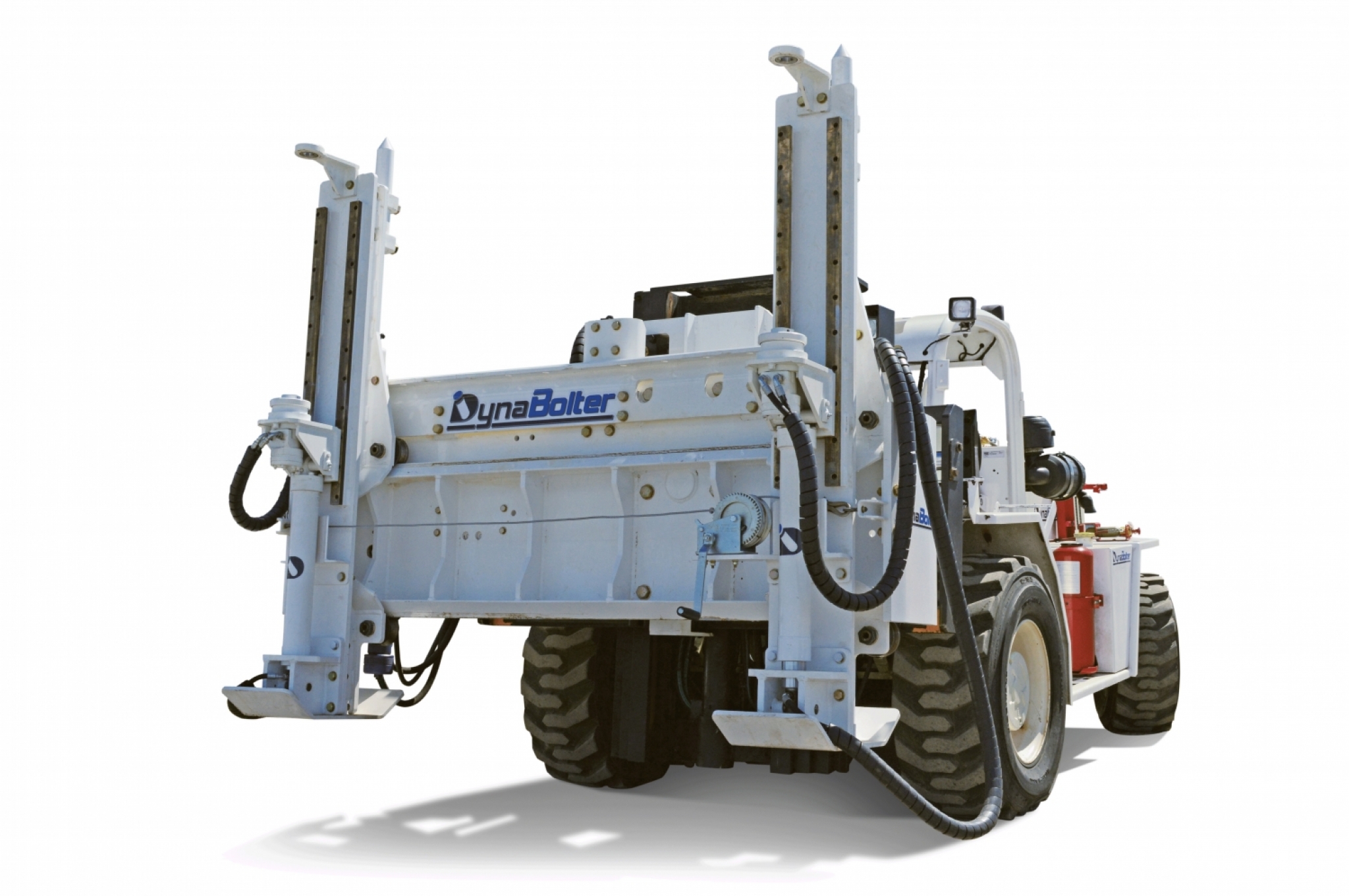

DynaBolter V6.0 Dual Driller

---

Description

Technical Specifications

 Safety

• Warning indicator lights and gauges
• Back-up alarm
• ROPS/FOPS certified canopy
• Low mount amber strobe light
• Checkfire suppression and control system
• Fire extinguisher
• Hydraulics cut-out when operator not present
• All functions automatically disable with arm-rest up
• No hydraulic lines in cab

Controls

• Single joystick with thumb rockers control: mast, head, drill and functions
• Electro hydraulic control

Working Capacity

• Capable of drilling in back height of: 2136mm (7’-0’’) to 5125mm (16’-8 1/8’’)
• 32.0’’ deep holes
• Drilling from 18.0" to 72.0" center to center
• Maximum back height: 5083mm (200.1")
• Minumum back height: 2340mm (92.1")

Chassis

• Overall height: 2032mm (80.0”)
• Overall length: 4724mm (186.0’’)
• Overall width: 2286mm (96.0’’)
• Ground clearance: 381mm (15.0’’)
• Wheelbase: 2209mm (87.0’’)

Engine

• 84 HP turbocharged diesel
• Meets Tier IV diesel emissions standards
• Engine protection shutdown system
• Engine manual throttle control
• Neutral safety start

Transmission and Drivetrain

• 4-speed manual transmission (powershift optional)
• 4-wheel drive
• F-N-R selector mounted to steering column
• High-load capacity drive and steer axles
• Limited slip differential

Operator’s Cab

• Single operator—sit down
• Ergonomic control positioning
• Forward and rear facing cameras (optional)

Work Lights

• Front and rear work lights
• LED spotlights
• Extra fender mounted work lights
