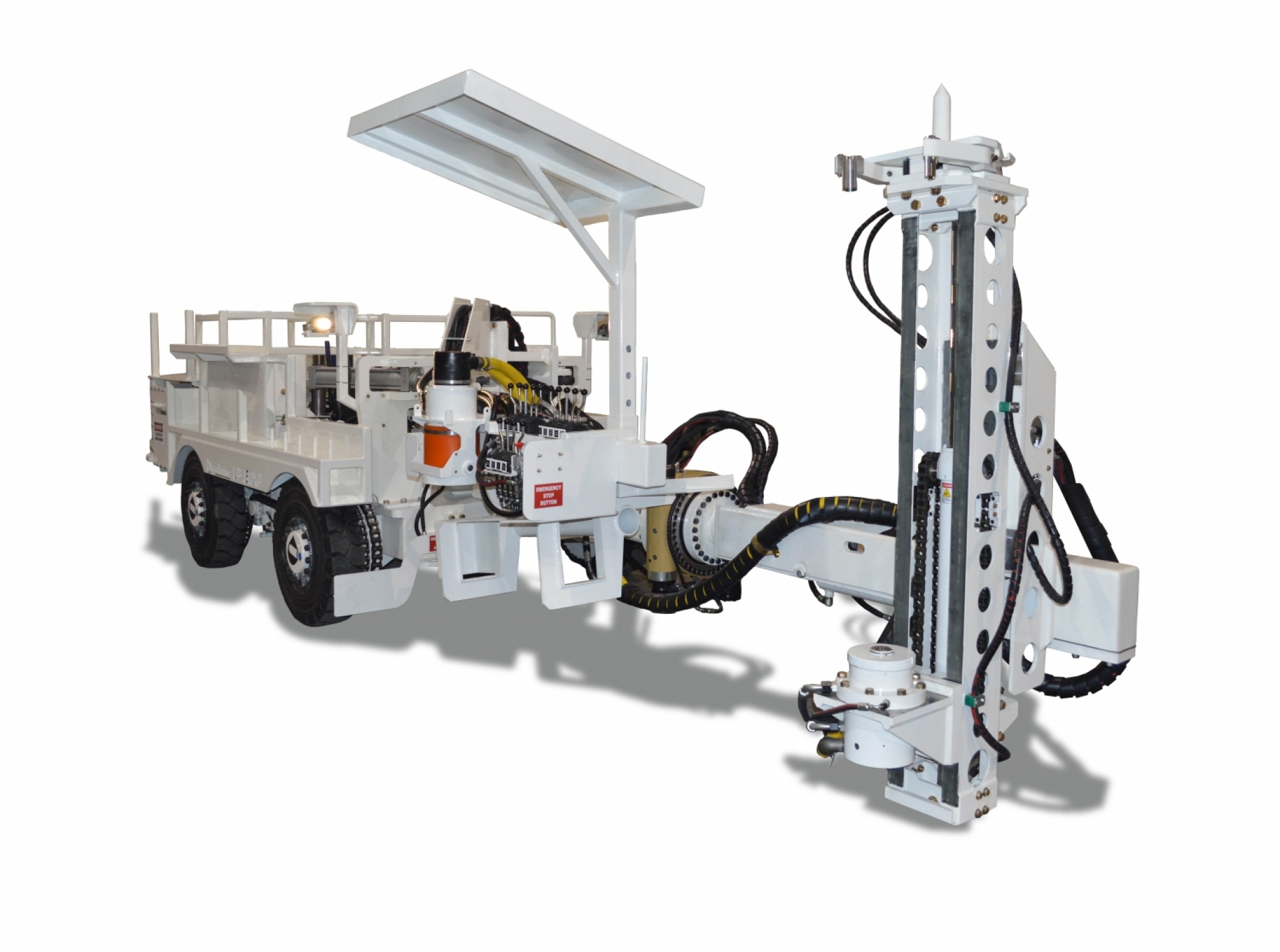

DynaBolter LP-50XP

---

Description

Technical Specifications

Safety

· Debris canopy

· Hydraulic E-stop

· SAHR (spring applied, hydraulically release)parking brake

· Dust suppression collection system

· Explosion proof (optional)

· 2 forward facing explosion proof lights

 Controls

· Full manual lever controls

· Can be driven from the seat and driven or operated from the control boom

 Working Capacity

· Boom swing: 45 degrees left and right

· Install 1829mm (72”) bolts in a 2295.1mm (90”) back

· Adaptable to shell or epoxy style bolts

· Maximum back height: 5123.5mm (202”)

· Minimum back height: 2295.1mm (90”)

· Maximum forward reach: 3508.7mm (138”)

Chassis

· Overall height: 1751.2mm (69”)

· Overall length: 4165.6mm (164”)

· Overall width: 2308.8mm (91")

· Ground clearance: 330mm (13")

· Wheelbase: 1714.5mm (67.5")

 Motor

· 50 HP—3 phase explosion proof

 Drivetrain

· 4 wheel drive

· 2 hydraulic motors with integral SAHRS brakes

· Differential steering

· High load capacity axels

· Tow mode allows for easy transport

 Operator’s Station

· Single operator—drive from sit or stand position

· Manual lever controls

 Drill Options

· Hollow bore hydraulic rotary

 Storage

· Rear, front and side storage for bolts, epoxy, drill steels
