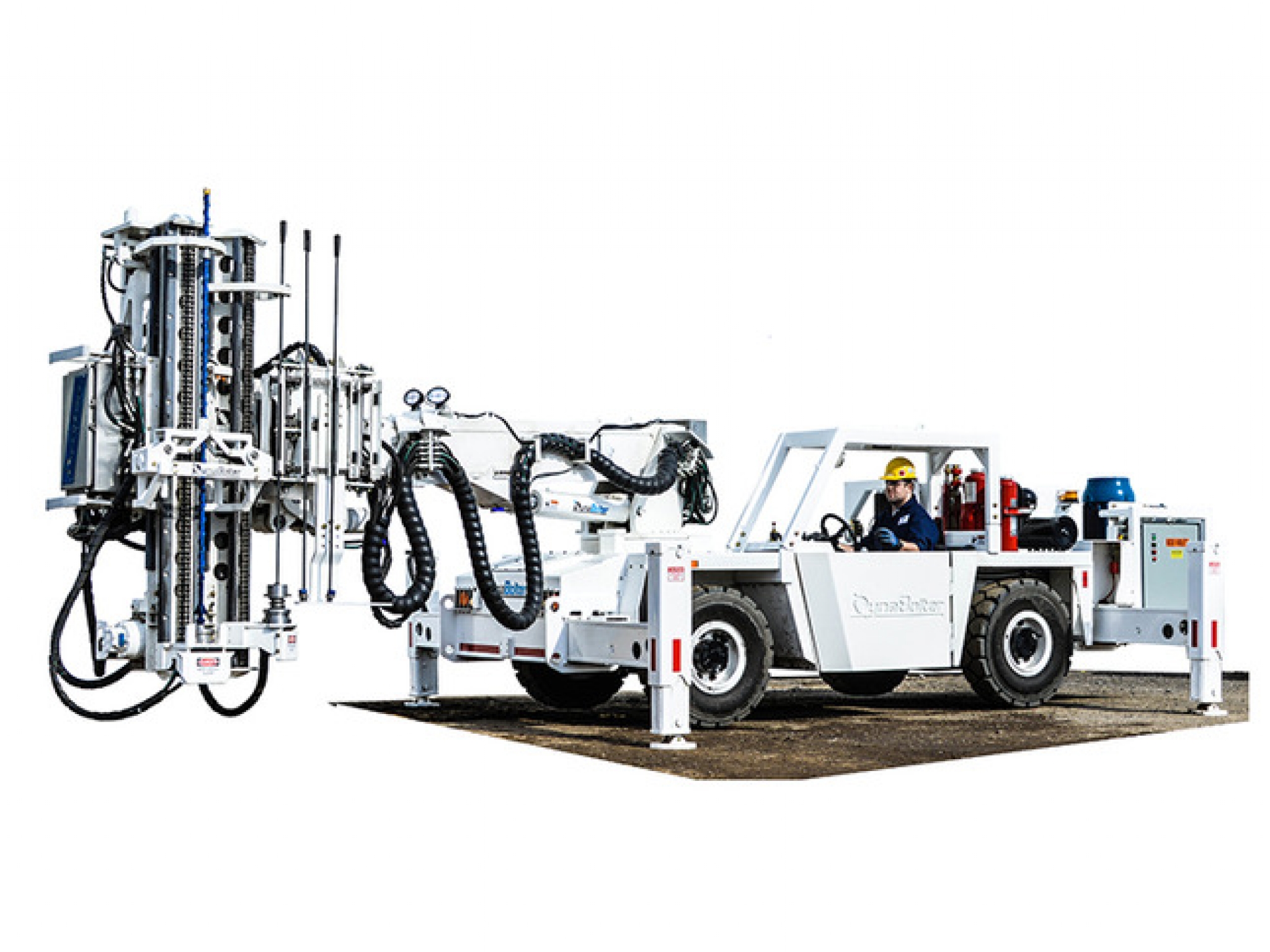

DynaBolter V3.0 - Roof Bolter


Description

Technical Specifications

 Safety

  • Warning indicator lights and gauges
  • Back-up alarm
  • ROPS/FOPS certified canopy
  • Low mount amber strobe light
  • Checkfire suppression and control system
  • Fire extinguisher
  • SAHR (spring applied, hydraulically release) parking brake
  • Hydraulics cut-out when machine in gear
  • All functions automatically disable when door is open
  • No hydraulic lines in cab
  • Dust suppression collection system (optional)

 Controls

  • Dual joysticks with thumb rockers control: outriggers, boom, head, drill & bolt functions
  • Electro-hydraulic control
  • Inclinometer

 Working Capacity

  • Boom swing: 270 degrees
  • Install 2438mm (8’-0”) bolts in a 2896mm (9’-6”) back
  • Capable of multiple bolt diameters
  • Adaptable to shell or epoxy style bolts
  • 6-bolt carousel
  • Horizontal bolting
  • 20% grade bolting
  • Maximum back height: 8052mm (317.0")
  • Minimum back height: 2373mm (93.4")
  • Maximum forward reach: 6248mm (246.0")

Chassis

  • Overall height: 2000mm (78.8”)
  • Overall length: 8881mm (349.6”)
  • Overall width: 298mm (117.4”)
  • Ground clearance: 229mm (9.0”)
  • Wheelbase: 2530mm (99.6”)

Engine

  • 85 HP Diesel
  • Meets Tier IV interim emissions standards
  • Full authority electronic
  • Engine monitoring system
  • Emergency engine shutdown (optional)

Transmission and Drivetrain

  • Power-shift automatic transmission
  • Torque converter driven piston pump
  • Full time four wheel drive
  • Oscillating rear axle

Operator's Cab

  • Single operator—sit down
  • 178mm (7.0”) onboard LCD operation screen
  • Forward and rear facing cameras (optional)

Work Lights

  • Front and rear LED work lights
  • LED spotlight
  • Extra fender mounted work lights

Drill Options

  • Hydraulic rotary
  • Hydraulic percussion drifter

Automated Epoxy Injection (Optional)

  • Epoxy injection controlled from operator’s cab
  • Epoxy injected using hydraulically driven compressed air
  • Separate arm switch and fire button prevents accidental discharge of epoxy
  • Smart check system ensures all conditions are met before firing epoxy

 Electric Power Pac (Optional)

  • 600 volt plug for drilling and bolting functions
